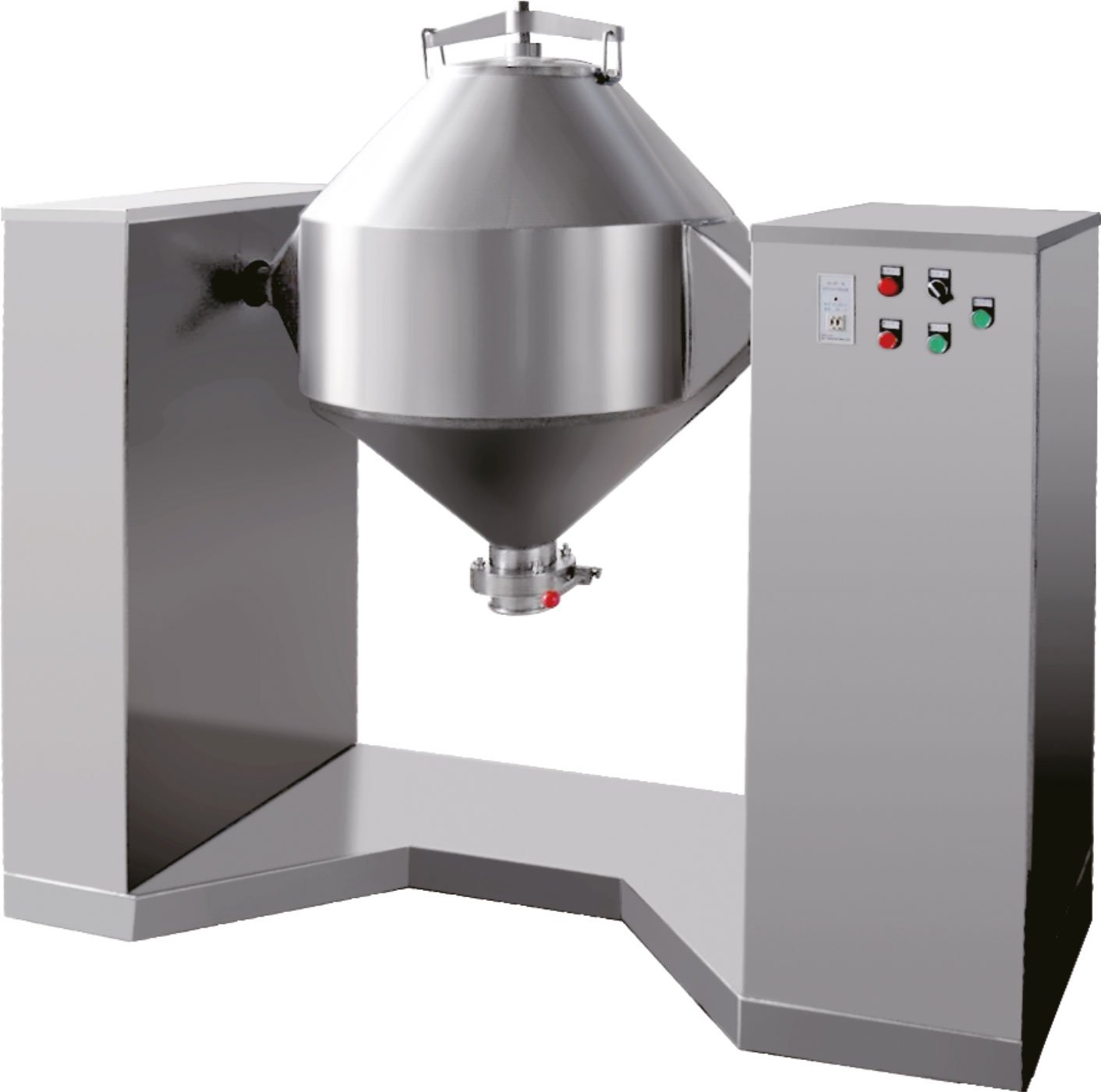

This machine is suitable for the mixing of dry powderparticles in pharmaceutical and other industries. It iseffective in mixing powders and particles with good fluidity.
| Parameter | W‑180 | W‑300 | W‑500 | W‑1000 | W‑1500 | W‑2000 | W‑2500 | W‑3000 | W‑4000 |
|---|---|---|---|---|---|---|---|---|---|
| Full Volume(m³) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2 | 2.5 | 3.0 | 4.0 |
| Production Capacity (kg / 次) | 40 | 80 | 100 | 200 | 300 | 400 | 500 | 600 | 800 |
| Mixing Time(min) | 4‑8 | 6‑10 | 6‑10 | 6‑10 | 6‑10 | 6‑10 | 6‑10 | 6‑10 | 6‑10 |
| Barrel Rotation Speed(rpm) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 7.8 | 7.8 |
| Power(kw) | 1.5 | 2.2 | 3 | 4 | 4 | 7.5 | 7.5 | 11 | 15 |
| Dimensions(L×W×H)(mm) | 1400×800×1850 | 1685×800×1850 | 1910×800×1940 | 2765×1500×2370 | 2960×1500×2480 | 3160×1900×3500 | 3386×1900×3560 | 4450×2200×3600 | 4750×2500×3680 |
| Total Height of Rotation(mm) | 1850 | 1850 | 2450 | 3000 | 3100 | 3700 | 3790 | 3700 | 3730 |
| Weight(kg) | 280 | 320 | 550 | 950 | 1020 | 1200 | 2040 | 2500 | 3200 |
