Pulverizer

+ Free Shipping

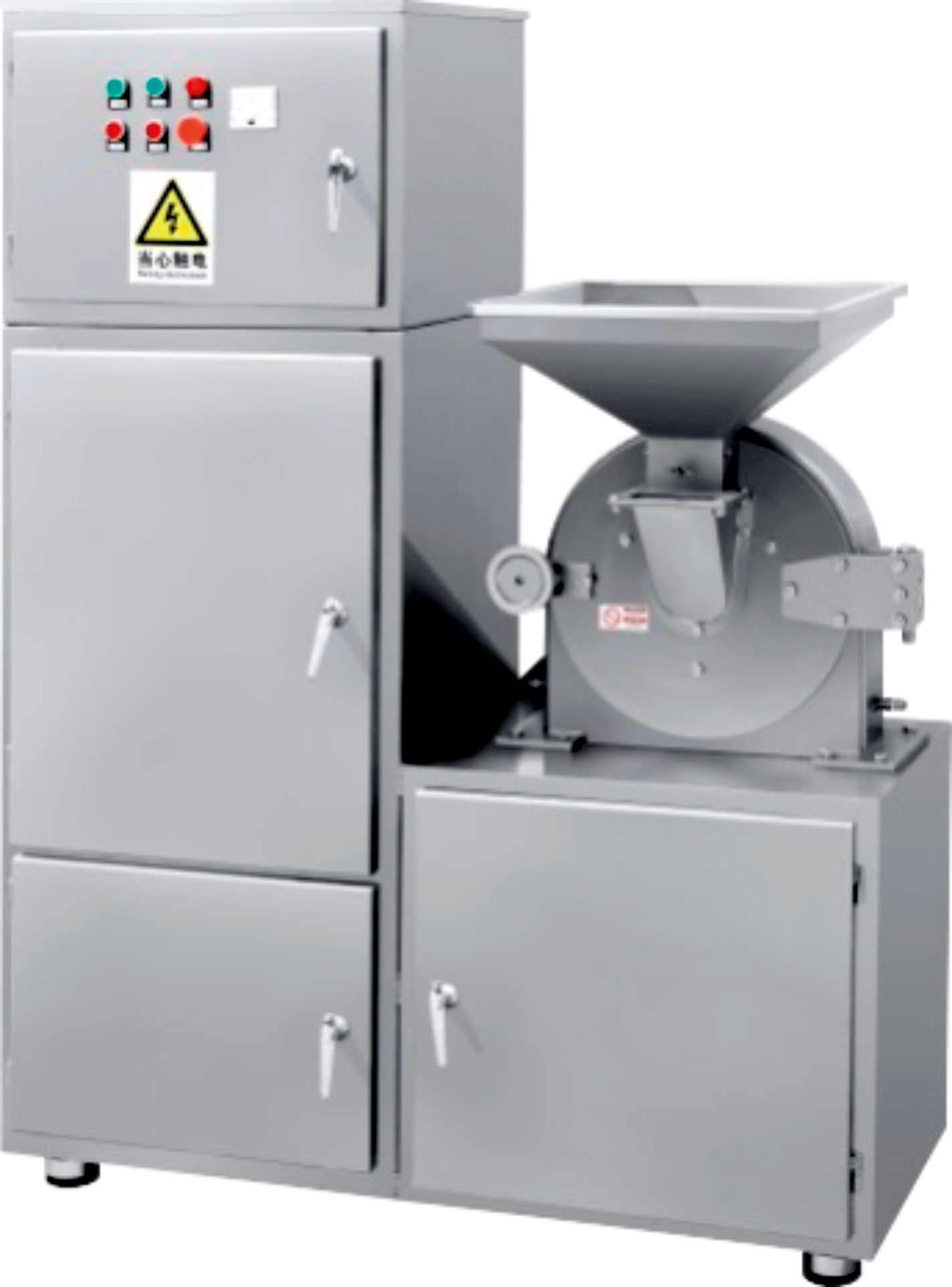

The pulverizer is mainly used for crushing powdered raw materials in the cosmetics industry. It adopts high-speedrotation to cause collision of raw materials inside the agitator so as to achieve crushing. Through the centrifugalforce generated by high-speed rotation and the dust suction motor, fine raw materials pass through the screeninto the materialtank, while coarse raw materials remain in the agitator for further crushing. The machine bearing isequipped with a water cooling device to prevent excessive temperature rise. Crushing and sieving are completedin one process with high efficiency.

Category:

The pulverizer is mainly used for crushing powdered raw materials in the cosmetics industry. It adopts high-speedrotation to cause collision of raw materials inside the agitator so as to achieve crushing. Through the centrifugalforce generated by high-speed rotation and the dust suction motor, fine raw materials pass through the screeninto the materialtank, while coarse raw materials remain in the agitator for further crushing. The machine bearing isequipped with a water cooling device to prevent excessive temperature rise. Crushing and sieving are completedin one process with high efficiency.

Parameter Specification
Power Supply 380/50Hz
Installation Requirements 380V Power supply (4 mm² wire) & water circulation
Total Power 7kw
Pulverizer Power 5.5kw
Blower Motor Power 1.5kw
Screen Mesh Size 80~200 目
Pulverizing Speed 0~4900rpm
Production Capacity 30~60kg/min
Overall Dimensions(L×W×H) 1340×780×1740mm
Net Weight 350kg
