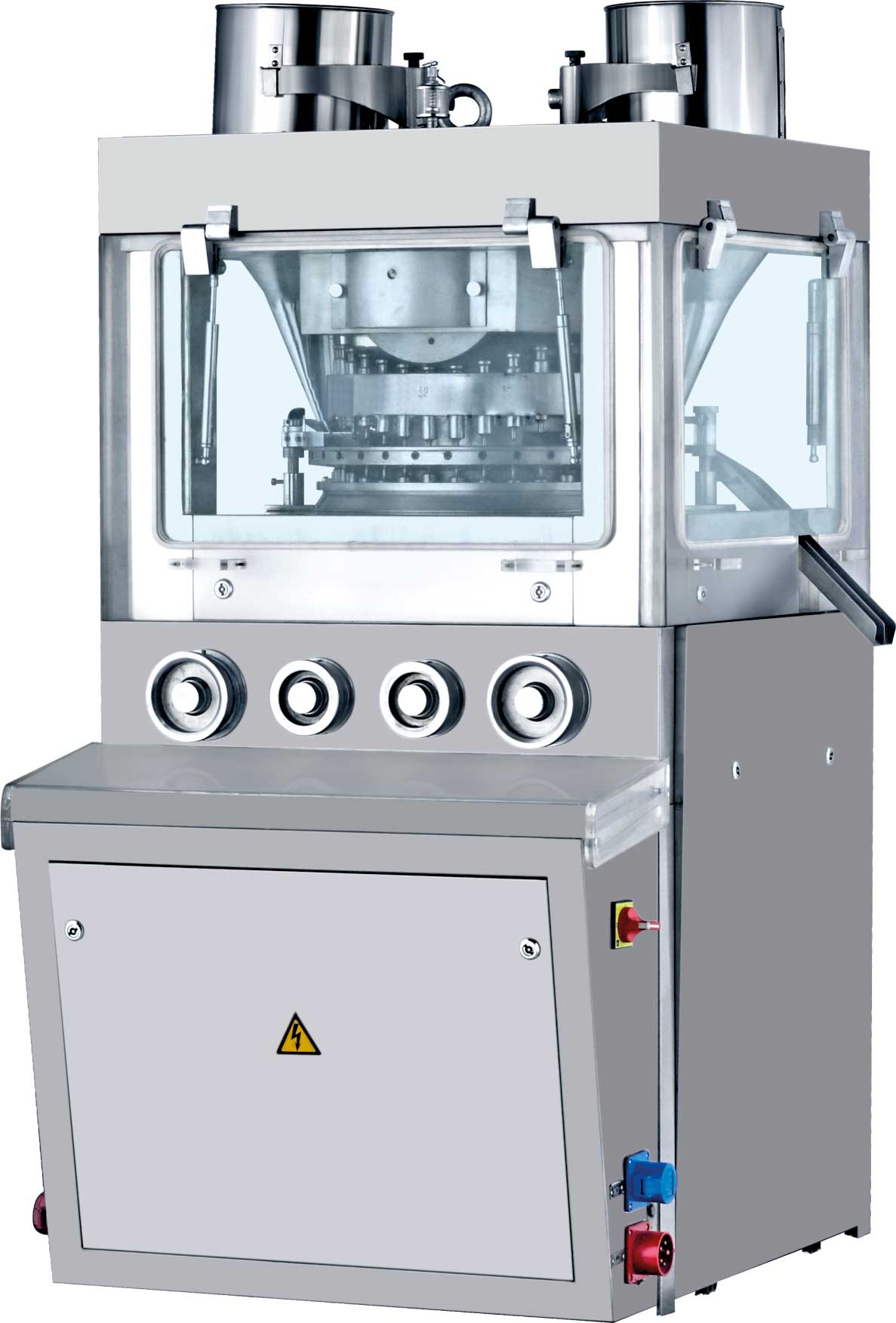

The outer cover is fully enclosed and made ofstainless steel. The internal table is made ofstainless steel. The surface of the turntable hasbeen specially treated to maintain surface glossand prevent cross-contamination, complying withGMP requirements.
The doors and windows equipped with transparentglass can clearly observe the status of thetableting, and can be fully opened, making it easyto clean and maintain the interior.All controllers and operating parts are well laid out.It adopts variable frequency speed regulation,which is easy to operate, stable in rotation, safeand accurate.
All transmission devices are arranged inside themachine to keep the machine clean.Equipped with an overload protection device, themachine can automatically shut down when thepressure is overloaded.
| Model | ZP41D | ZP37D | ZP35D |
|---|---|---|---|
| Number of Stations | 41 | 37 | 35 |
| Tooling Standard | ZP | ZP | ZP |
| Max Main Pressure (KN) | 80 | 80 | 80 |
| Max Tablet Diameter (mm) Round tablet | 13 | 13 | 13 |
| Irregular tablet | 16 | 16 | 16 |
| Max Filling Depth (mm) | 15 | 15 | 15 |
| Max Tablet Thickness (mm) | 6 | 6 | 6 |
| Max Turret Speed (r/min) | 36 | 36 | 36 |
| Max Production Capacity (pcs/h) | 177000 | 160000 | 151200 |
| Motor Power (kw) | 4 | 4 | 4 |
| Overall Size (mm) | 1120×950×1700 | 1120×950×1700 | 1120×950×1700 |
| Machine Weight (kg) | 1850 | 1850 | 1850 |
